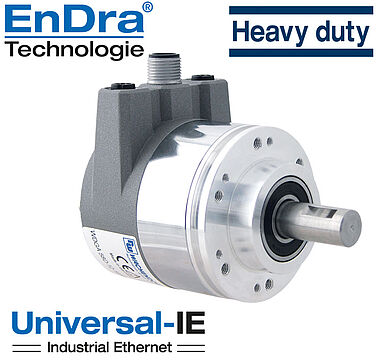

磁性绝对值编码器, Universal IE WDGA 58D
总线盖 3x M12x1
夹紧法兰
外壳：Ø 58mm
16位/43位 单圈/多圈;
轴：Ø 12mm
极高的轴负载径向500N, 轴向500N
协议 selectable
(PROFINET-IO, EtherNet/IP, EtherCAT)
- Endra® 技术：免维护、无污染
- Universal IE,多圈或者单圈
- 带总线盖的紧凑型设计
- 单圈/多圈（最大16位/43位）
- 前瞻性技术
- 双色LED指示运行状态和总线状态和两个L/A LED
- 轴最大负载可达径向500N,轴向500N
- Configurable via integrated web server:
- Selectable: PROFINET-IO, EtherNet/IP, EtherCAT
- IP address
- Subnet mask
- Gateway address
- Encoder parameters readable
- Firmware update
最大65,536步/圈（16位）
多圈分辨率43位
轴长: 25 mm
轴允许最大负载径向: 500 N
轴允许最大负载轴向: 500 N
消耗电流: typ. 125 mA
功耗: typ. 3 W
Licensing declaration
IP >= V1.00
Licensing declaration
Download (582 KB)
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43 bit)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.34 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
PROFINET IO; EtherNet/IP; EtherCAT; Universal IE
Download (904 KB)
GSDML file for ≥ vers. 2.00
WDGA absolute with PROFINET IO
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (13.97 KB)
GSDML file for ≥ vers. 2.00
WDGA absolute with PROFINET IO
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (13.59 KB)
XML-Device Description WDGA absolut with EtherCAT.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (12.41 KB)
for WDGA absolut encoders with EtherNet/IP.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (10.22 KB)
Ready-made Industrial Ethernet connection cable KIE-4-67-RJ:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EthertNet/IP, EtherCAT, universal IE)
Plug M12 - cable - plug RJ45
Ready-made Industrial Ethernet connection cable KIE-4-67-DC:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EthertNet/IP, EtherCAT, universal IE)
Plug M12 - cable - plug M12
安装角MW58B
适用于增量编码器WDGI 58B, 58K, 58D, 58N, WDG 58T和磁性绝对值编码器WDGA58B, WDGA58D
波纹管联轴器 BK29
用于与轴直径6毫米，8毫米，10毫米或12毫米*编码器。
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
弹性联轴器 DSK38
用于与轴直径6毫米，8毫米，10毫米或12毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
弹性联轴器 DSK48
用于与轴直径10毫米，12毫米或14毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
