WDGA 58A SSI

磁性绝对值编码器, SSI WDGA 58A,
实心轴编码, 同步法兰 Ø 58mm

16位/43位 单圈/多圈;
轴:Ø 6 mm, Ø 8 mm, Ø 10 mm, Ø 3/8";
SSI格雷码或二进制编码

数据手册General technical data absolute encoders SSI (PDF 281 kB)
Drehgeber WDGA58ASSI
特点
  • Endra®多圈专利技术
  • 免维护,无污染
  • SSI格雷码或二进制编码
  • 单圈/多圈(16位/43位)
  • 具备32位处理器的前瞻性技术
  • 双色LED指示运行状态
  • 轴最大负载可达径向220N,轴向120N
产品详细说明
法兰
同步法兰
外壳
Ø 58 mm
不锈钢(连接器除外:CH8 和 C5 = 镀铬钢外壳,磁屏蔽)
分辨率
单圈分辨率

高达65,536步/圈(16位)

多圈分辨率

高达43位

轴径
Ø 6 mm
说明: 建议: 注意: AAO=整体防护IP67
轴长: 12 mm
轴允许最大负载径向: 125 N
轴允许最大负载轴向: 120 N
Ø 8 mm
说明: 建议: 注意: AAO=整体防护IP67
轴长: 19 mm
轴允许最大负载径向: 125 N
轴允许最大负载轴向: 120 N
Ø 9.525 mm
说明: 建议: 注意: AAO=整体防护IP67
轴长: 20 mm
轴允许最大负载径向: 220 N
轴允许最大负载轴向: 120 N
Ø 10 mm
轴长: 20 mm
轴允许最大负载径向: 220 N
轴允许最大负载轴向: 120 N
最大运行速度
8000 rpm
供电电压
4.75 VDC ~ 32 VDC
消耗电流: typ. 50 mA
功耗: max. 0.5 W
4.75 VDC ~ 5.5 VDC
消耗电流: typ. 80 mA
功耗: max. 0.44 W
工作温度
-40°C ~ +85°C
存储温度
-40°C ~ +100°C
防护等级
外壳: IP65, IP67; 主轴密封: IP65; 电缆的型号 K1: IP40, K6: IP20
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述
L2轴向, 屏蔽线与编码器外壳连接
分配
GND白色
(+) Vcc棕色
SSI CLK+绿色
SSI CLK-黄色
SSI DATA+灰色
SSI DATA-粉色
PRESET蓝色
DIR红色
屏蔽外壳
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述

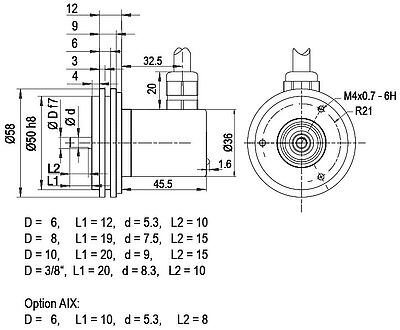

L3径向, 屏蔽线与编码器外壳连接
分配
GND白色
(+) Vcc棕色
SSI CLK+绿色
SSI CLK-黄色
SSI DATA+灰色
SSI DATA-粉色
PRESET蓝色
DIR红色
屏蔽外壳
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述
K1径向, 屏蔽线未与编码器外壳连接
分配
GND白色
(+) Vcc棕色
SSI CLK+绿色
SSI CLK-黄色
SSI DATA+灰色
SSI DATA-粉色
PRESET蓝色
DIR红色
屏蔽外壳 n.c.
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述

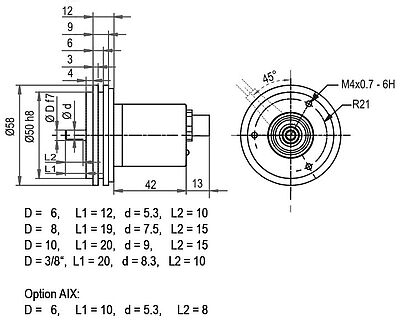

CB8轴向, 8-pin, 屏蔽线与编码器外壳连接
分配
GND1
(+) Vcc2
SSI CLK+3
SSI CLK-4
SSI DATA+5
SSI DATA-6
PRESET7
DIR8
屏蔽外壳
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述
CC8径向, 8-pin, 屏蔽线与编码器外壳连接
分配
GND1
(+) Vcc2
SSI CLK+3
SSI CLK-4
SSI DATA+5
SSI DATA-6
PRESET7
DIR8
屏蔽外壳
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述
CH8径向, 8-pin, 屏蔽线与编码器外壳连接
分配
GND2
(+) Vcc1
SSI CLK+6
SSI CLK-5
SSI DATA+4
SSI DATA-3
PRESET8
DIR7
屏蔽外壳
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里

描述
C5径向, 12-pin, 屏蔽线与编码器外壳连接
分配
GND12
(+) Vcc11
SSI CLK+2
SSI CLK-1
SSI DATA+3
SSI DATA-4
PRESET9
DIR8
屏蔽外壳
General technical Data and safety instructions absolute encoders WDGA SSI
General technical Data and safety instructions absolute encoders WDGA SSI

Handout Absolute encoders WDGA
Handout Absolute encoders WDGA

  • Absolute encoders with flange Ø 36 mm / Ø 58 mm
  • Single-/Multiturn (16/43 bit)
  • Ground-breaking technology 32 Bit processor
  • Very high shaft loading, IP67
  • EnDra® Multiturn technology: No gears, no battery
  • QuattroMag® Singleturn technology: High precision +/- 0,0878°

Short-Catalogue Encoders and systems
Short-Catalogue Encoders and systems

  • Incremental and absolute encoders
  • Digital shaft copying
  • Made in Germany
  • Motorfeedback
  • Position Measurement Systems

HALT Test
The HALT-Test

Delivery times and service
Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Assembly instructions for WDGA absolute encoder SSI
Assembly instructions for WDGA absolute encoder SSI

Technical Note deutsch
Technical Note WDGA SSI Basics

deutsch

Technical Note english
Technical Note WDGA SSI Basics

english

EC Konformitätserklärung Drehgeber : EC declaration of conformity encoder
EU declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

UKCA declaration of conformity absolute encoder WDGA 2.0 CAN/SSI
UKCA declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

UL Certificates for Wachendorff Automation Products 2014-03-28
UL Certificates

for Wachendorff Automation products.

REACH regulation
REACH- and RoHS regulation of the EU

Informationen

ISO Certificate DIN EN 9001:2015
ISO Certificate DIN EN 9001:2015

WDG053XIOM

SSI display unit for absolute encoders WDGA SSI with Singleturn or Multiturn

with 4 presets and outputs

KI867SSI Drehgeber Kabeldose
KI-8-67-SSI

母头连接器 KI-8-67-SSI :
适用于连接器出线的 CB8/CC8, 8pin, IP67 WDGA SSI

直头母头连接器带屏蔽电缆,屏蔽连接

KIA867SSI Drehgeber Kabeldose
KIA-8-67-SSI

母头连接器 KIA-8-67-SSI :
适用于连接器出线的 CB8/CC8, 8pin, IP67, WDGA SSI

弯头母头连接器带屏蔽电缆,屏蔽连接

KD867SSI Drehgeber Kabeldose
KD-8-67-SSI

母头连接器 KD-8-67-SSI :
适用于连接器出线的 CH8, 8pin, IP67, WDGA SSI

直头母头连接器带屏蔽电缆,屏蔽连接

KDA867SSI Drehgeber Kabeldose
KDA-8-67-SSI

母头连接器 KDA-8-67-SSI :
适用于连接器出线的 CH8, 8pin, IP67

弯头母头连接器带屏蔽电缆,屏蔽连接
插入式安装

KD1267SSI Drehgeber Kabeldose
KD-12-67-SSI

母头连接器 KD-12-67-SSI :
适用于连接器出线的 C5, 12pin, IP67, WDGA SSI

直头母头连接器带屏蔽电缆,屏蔽连接

KDA1267SSI Drehgeber Kabeldose
KDA-12-67-SSI

母头连接器 KDA-12-67-SSI :
适用于连接器出线的 C5, 12pin, IP67 WDGA SSI

弯头母头连接器带屏蔽电缆,屏蔽连接
插入式安装

SP300 Drehgeber Spannexzenter
SP-3-00

偏心夹紧SP-3-00

合适的增量式编码器 WDG 40A, 50B, 58T, WDGI 58A, 58B, 58C, 58D, 58K, 63B, WDGP 36A, WDGP 58A, WDGP 58B.
合适的绝对值编码器 WDGA 36A, WDGA 58A, WDGA 58B.

STEP file

MG58A Drehgeber Montageglocke 01
MG58A

安装钟MG58A

合适的增量式编码器 WDGI 58A.
合适的绝对值编码器 WDGA 58A.

STEP file

ST27 Kupplung Drehgeber
ST27

接头型联轴器 ST27

用于与轴直径6毫米或10毫米编码器。

PK20 Kupplung Drehgeber
PK20

切口型联轴器 PK20

用于与轴直径6毫米编码器。

PK24 Kupplung Drehgeber
PK24

切口型联轴器 PK24

用于与轴直径6毫米,8毫米或10毫米编码器。

FSK22 Kupplung Drehgeber
FSK22

弹簧垫圈联轴器 FSK22

用于与轴直径6毫米,8毫米或12毫米编码器。

WK22 Kupplung Drehgeber
WK22

螺旋联轴器 WK22

用于与轴直径6毫米编码器。

WK24 Kupplung Drehgeber
WK24

螺旋联轴器 WK24

用于与轴直径6毫米,8毫米,10毫米或12毫米编码器。

 STEP-Download WK240610

WK32 Kupplung Drehgeber
WK32

螺旋联轴器 WK32

用于与轴直径6毫米或10毫米编码器。

BK29 Kupplung Drehgeber
BK29

波纹管联轴器 BK29

用于与轴直径6毫米,8毫米,10毫米或12毫米*编码器。
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

波纹管联轴器 FB29B

用于与轴直径4毫米,6毫米,8毫米,10毫米或12毫米编码器。

DSK29 Kupplung Drehgeber
DSK29

弹性联轴器 DSK29

用于与轴直径6毫米,8毫米或10毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

 STEP Download DSK290606

 STEP Download DSK290610

DSK38 Kupplung Drehgeber
DSK38

弹性联轴器 DSK38

用于与轴直径6毫米,8毫米,10毫米或12毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

STEP-Datei DSK380606

DSK48 Kupplung Drehgeber
DSK48

弹性联轴器 DSK48

用于与轴直径10毫米,12毫米或14毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

STEP download DSK481012

WDGA 58A SSI绝对值编码器可以提供整体防护IP67的型号。
(full IP67 only connection CB8, CC8, CH8, C5, L2 or L3 version; not cable connection K1 = IP40).
最大转速:             3500 rpm
轴允许最大负载:  轴向100N;径向110N
启动力矩:             常温下大约4Ncm

WDGA 58A SSI轴长:Ø 6mm轴也有轴长仅为10mm的型号可选。
