磁性绝对值编码器, CANopen WDGA 58V,
专用于食品、饮料行业耐酸、碱性
整体防护等级可达IP67和IP69K(高压/蒸汽)
实心轴编码,
夹紧法兰
外壳：Ø 58mm
16位/43位 单圈/多圈;
轴：Ø 10mm;
遵循CiA 301通信协议
编码器 CiA 406 V3.2 Class C2 设备协议;
二进制代码
- 成功通过耐盐雾测试(IEC 60068-2-11)
- 整体防护等级可达IP67和IP69K(高压/蒸汽)
- EHEDG（欧洲卫生工程设计组织）: 通过卫生设计测试
- EnDra®: 技术：免维护、无污染
- 专用于食品、饮料行业耐酸、碱性
- CANopen, 单圈或者多圈
- 遵循CiA 301通信协议
- 编码器 CiA 406 设备协议
- 单圈/多圈（16位/43位）
- 具备32位处理器的前瞻性技术
65,536步/圈 (16位)
多圈分辨率最大达32位
高精度可达高达43位
轴长: 18 mm
轴允许最大负载径向: 100 N
轴允许最大负载轴向: 100 N
消耗电流: typ. 50 mA
功耗: max. 0.5 W
| 描述 | |
|---|---|

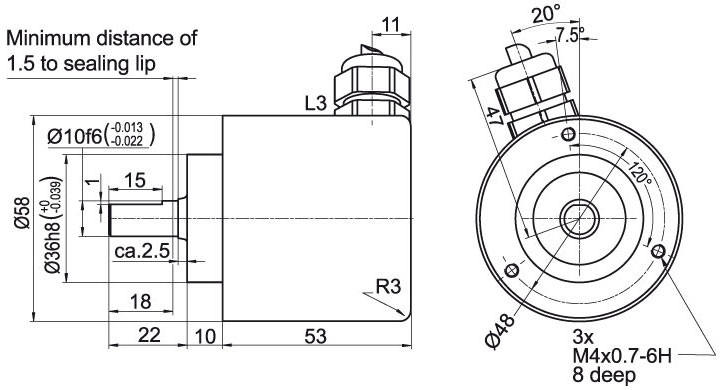

| L3 | 径向, 屏蔽线与编码器外壳连接 |
| (+) Vcc | 棕色 |
| GND | 橙色 |
| CANHigh | 绿色 |
| CANLow | 黄色 |
| CANGND/屏蔽 | 屏蔽线 |
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43 bit)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.33 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.29 MB)
EDS file for encoder absolute WDGA singleturn, CANopen.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (19.88 KB)
EDS file for encoder absolute WDGA multiturn, CANopen.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (19.90 KB)
against the detergent and desinfectants P3-topactive DES, P3-topax 19, P3-topax 56, P3-topax 66 and P3-topax 91, as well as demineralised water as zero value.
Download (110 KB)
for Wachendorff Automation GmbH & Co. KG.
Download (144 KB)
for Wachendorff Automation GmbH & Co. KG.
Download (611 KB)
WDGA 58V CANopen绝对值编码器也可以提供集成了120欧姆终端电阻的型号。
