The proven LMSCA and LMSMA length measuring systems can be equipped with a gear wheel for slip-free measurement. Thanks to toothed wheels made of plastic, no additional lubricant is required.
Simply mount the appropriate rail on a slide or your measuring object and the length measuring system with its encoder and positive-locking gear wheel measures speed, length and position without slippage.
For high loads, the length measuring systems can also be used with metal gearwheels; in this case, additional lubrication is required.
The ultra-compact and robust length measuring system LMSCA
incl. encoder WDGP 36A
- Space-saving, reliable system for position, speed and length
- Up to 0.0125 mm/pulse for excellent measuring results
- Damping bearing
- Contact pressure - easily adjustable by intelligent central adjustment
- Quickly mounted and adjusted
Small, compact and very accurate:
The LMSCA is equipped with a 36 mm diameter rotary encoder and is only 120 mm long. The rotary encoder can be ordered between 1 ppr and 16,384 ppr, providing the exact number of pulses for your application. The LMSCA length measuring system achieves a resolution of up to 0.0125mm/pulse. Alternatively, as an absolute encoder with the patented QuattroMag® single-turn technology and EnDra® multi-turn technology, the encoder can send e.g. CAN messages, RS485 or SSI signals.
These LMSCA systems can be perfectly combined with Module 1 gear racks. For more information on the LMSCA length measuring system, also with other measuring wheels, see "More information" on our website, contact your contact person or use our chat function.

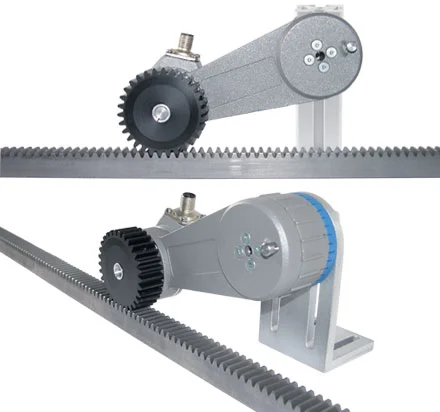

The compact length measuring system LMSMA
- Space-saving, reliable complete system for position, speed and length
- Adjustable contact pressure
- Adjustment without disassembly
- Fixation in rest position
- Selectable resolutions from 1.0 to 0.008 mm/pulse (incremental, as complete system)
or up to 0.003 mm/step (absolute, consisting of individual components: measuring wheel, spring arm and encoder)
- Quickly mounted and adjusted thanks to patented grid system
Long service life due to high mechanical robustness of all components. Fast and flexible mounting on the machine.
These LMSMA systems can be perfectly combined with Module 2 gear racks. For more information on the LMSMA length measuring system, also with other measuring wheels, see "More information" on our website, contact your contact person or use our chat function.
