Wachendorff Automation 磁性绝对值编码器, SSI, WDGA 58V, 专用于食品、饮料行业耐酸、碱性成功通过耐盐雾测试(IEC 60068-2-11) 整体防护等级可达IP67和IP69K(高压/蒸汽) 实心轴编码, 夹紧法兰 Ø 58毫米

WDGA 58V SSI

磁性绝对值编码器, SSI, WDGA 58V,
专用于食品、饮料行业耐酸、碱性
成功通过耐盐雾测试(IEC 60068-2-11)
整体防护等级可达IP67和IP69K(高压/蒸汽)
实心轴编码,
夹紧法兰
外壳：Ø 58mm

16位/43位单圈/多圈;
轴：Ø 10mm,
SSI格雷码或二进制编码

数据手册 General technical data absolute encoders SSI (PDF 607 kB)

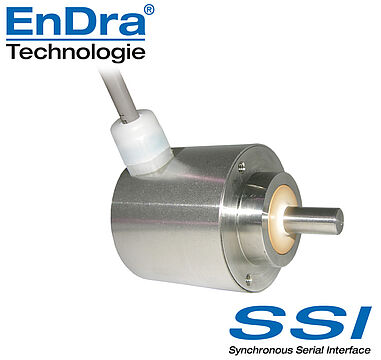

Illustration similar

产品参数

特点

成功通过耐盐雾测试（IEC60068-2-11）
防护：IP67+IP69K（高压/蒸汽）
EHEDG（欧洲卫生工程设计组织）: 通过卫生设计测试
专用于食品、饮料行业耐酸、碱性
Endra_^®多圈专利技术
免维护，无污染
SSI格雷码或二进制编码
单圈/多圈（16位/43位）
具备32位处理器的前瞻性技术

产品详细说明

法兰

夹紧法兰

外壳

Ø 58 mm

不锈钢,V4A

分辨率

单圈分辨率

高达65,536步/圈（16位）

多圈分辨率

高达43位

轴径

Ø 10 mm
轴长: 18 mm
轴允许最大负载径向: 100 N
轴允许最大负载轴向: 100 N

最大运行速度

3600 rpm

供电电压

4.75 VDC ~ 32 VDC
消耗电流: typ. 50 mA
功耗: max. 0.5 W

4.75 VDC ~ 5.5 VDC
消耗电流: typ. 80 mA
功耗: max. 0.44 W

工作原理

磁

工作温度

-20°C ~ +80°C

存储温度

-20°C ~ +80°C

防护等级

整体防护等级可 IP67 和 IP69K

电缆连接 L3, 径向, 电缆2m

所有尺寸标注单位为mm

STEP查看器/STEP数据:

WDGA58V10xxxxL3.stp

您需要的STEP文件没有被列出：
需要STEP文件这里

描述
L3	径向, 屏蔽线与编码器外壳连接

分配

GND	橙色
(+) Vcc	棕色
SSI CLK+	绿色
SSI CLK-	黄色
SSI DATA+	灰色
SSI DATA-	粉色
PRESET	蓝色
DIR	红色
屏蔽	外壳

综合技术参数

General technical Data and safety instructions absolute encoders WDGA SSI

Download (607 KB)

样本 (Flyer / Handouts)

Handout Absolute encoders WDGA

Absolute encoders with flange Ø 36 mm / Ø 58 mm
Single-/Multiturn (16/43 bit)
Ground-breaking technology 32 Bit processor
Very high shaft loading, IP67
EnDra^® Multiturn technology: No gears, no battery
QuattroMag^®Singleturn technology: High precision +/- 0,0878°

Download (1.33 MB)

Kurzkatalog Drehgeber - Short catalogue encoders

Short-Catalogue Encoders and systems

Incremental and absolute encoders
Digital shaft copying
Made in Germany
Motorfeedback
Position Measurement Systems

Download (4.30 MB)

应用报告

Innovation and progress:

The future of steel production with smart sensor technology.

Download (1.51 MB)

The HALT-Test

Download (1.23 MB)

Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Download (538 KB)

装配说明

Assembly instructions for WDGA absolute encoder SSI

Download (913 KB)

技术说明

Technical Note WDGA SSI Basics

deutsch

Download (265 KB)

Technical Note WDGA SSI Basics

english

Download (460 KB)

证书和法规

ECOLAB - Certificate of the tested resistance of material

against the detergent and desinfectants P3-topactive DES, P3-topax 19, P3-topax 56, P3-topax 66 and P3-topax 91, as well as demineralised water as zero value.

Download (110 KB)

EC Konformitätserklärung Drehgeber : EC declaration of conformity encoder

EU declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

Download (611 KB)

UKCA declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

Download (144 KB)

UL Certificates

for Wachendorff Automation products.

Download (556 KB)

REACH- and RoHS regulation of the EU

Informationen

Download (179 KB)

ISO Certificate DIN EN 9001:2015

Download (419 KB)
