Draw-wire system Robust Line SZG60

SZG60

Measuring range: 0 mm up to 1250 mm
output: incremental. CANopen or SSI
IP65 encoder ready-mounted
Housing: Aluminium, anodised, spring case PA6

数据手册

产品参数

特点

Ball bearing drill protection
Measuring rope (stainless steel)
Bushing
Quick and easy mounting

产品详细说明

描述

The draw-wire encoder SZG 60 was developed for use in harsh environments. It can be used even where space is tight, thanks to its compact dimensions.
The SZG 60 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions. The encoder is already installed.

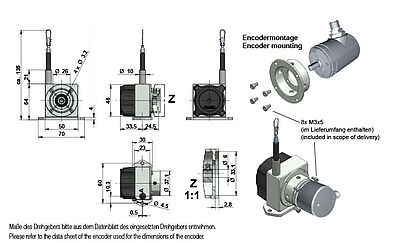

STEP: SZG600125xxxxSIAG01CB8.stp

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

测量范围

0 - 1250 mm

分辨率

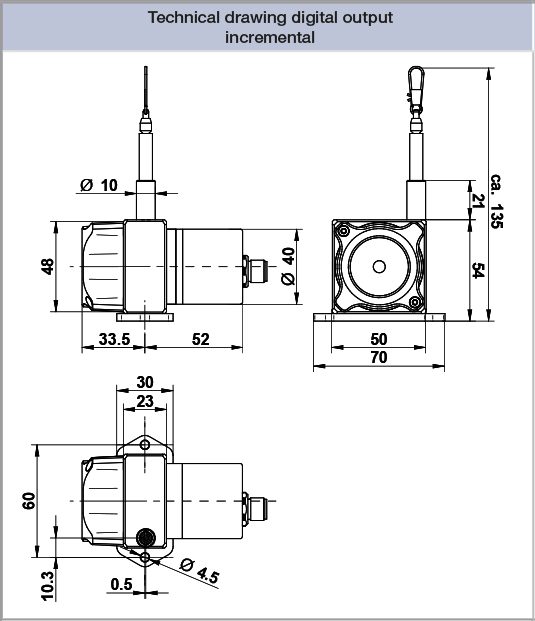

Resolution incremental	Order No.
4 pulses/mm	SZG60012500500ABR24SB8
10 pulses/mm	SZG60012501250ABR24SB8
20 pulses/mm	SZG60012502500ABR24SB8

Resolution absolute CANopen	Order No.
32.77 steps/mm	SZG6001251218COAB00CB5

Resolution absolute SSI	Order No.
32.77 steps/mm	SZG6001251212SIAG01CB8
