DSK29

弹性联轴器 DSK29

用于与轴直径6毫米,8毫米或10毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

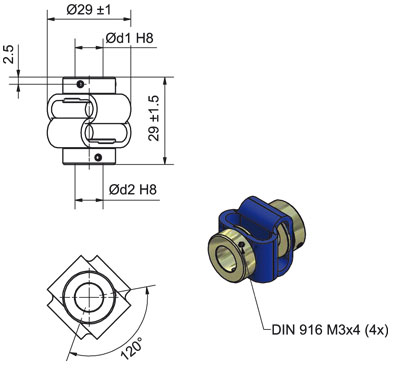

DSK29 Kupplung Drehgeber
Illustration similar
最大运行速度
3000 rpm
最大扭矩
50 Ncm
轴最大径向补偿
±2.0 mm
轴最大轴向补偿
±2.0 mm
轴最大角度补偿
±10°
扭力弹簧刚度
13 Nm/rad
径向弹簧刚度
13 N/mm
转动惯量
41 gcm²
最大阻尼转矩
100 Ncm
重量
33 g
材质

flange: steel galvanized
conecting element: polyurethane

工作温度
-30°C ~ +80°C
订货型号
DSK290810
弹性联轴器:Ø d1 = 8 mm, Ø d2 = 10 mm
DSK290808
弹性联轴器:Ø d1 = 8 mm, Ø d2 = 8 mm
DSK291010
弹性联轴器:Ø d1 = 10 mm, Ø d2 = 10 mm
DSK290606
弹性联轴器:Ø d1 = 6 mm, Ø d2 = 6 mm
DSK290610
弹性联轴器:Ø d1 = 6 mm, Ø d2 = 10 mm
所有尺寸标注单位为mm
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里
