DSK29

弹性联轴器 DSKF29
with FDA-compliant plastic and hubs made of V4A (1.4404) stainless steel

用于与轴直径6毫米,8毫米或10毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK29 DSKF29 Kupplung Drehgeber
Illustration similar
最大运行速度
3000 rpm
最大扭矩
50 Ncm
轴最大径向补偿
±2.0 mm
轴最大轴向补偿
±2.0 mm
轴最大角度补偿
±10°
扭力弹簧刚度
13 Nm/rad
径向弹簧刚度
13 N/mm
转动惯量
41 gcm²
最大阻尼转矩
80 Ncm
重量
35 g
材质

Flange: Stainless steel V4A (1.4404)
Connecting element: FDA-compliant plastic

工作温度
-30°C ~ +80°C
订货型号
DSKF290606
弹性联轴器:Ø d1 = 6 mm, Ø d2 = 6 mm
DSKF290610
弹性联轴器:Ø d1 = 6 mm, Ø d2 = 10 mm
DSKF290808
弹性联轴器:Ø d1 = 8 mm, Ø d2 = 8 mm
DSKF290810
弹性联轴器:Ø d1 = 8 mm, Ø d2 = 10 mm
DSKF291010
弹性联轴器:Ø d1 = 10 mm, Ø d2 = 10 mm

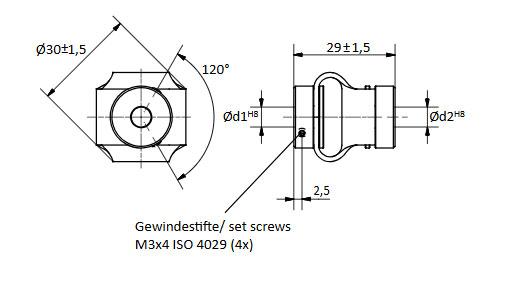

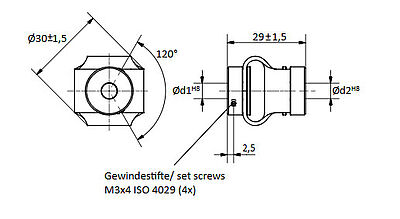

所有尺寸标注单位为mm
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里
