DSKF48

弹性联轴器 DSKF48
with FDA-compliant plastic and hubs made of V4A (1.4404) stainless steel

用于与轴直径10毫米,12毫米或14毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK48 Kupplung Drehgeber
Illustration similar
最大运行速度
3000 rpm
最大扭矩
200 Ncm
轴最大径向补偿
±3.0 mm
轴最大轴向补偿
±4.0 mm
轴最大角度补偿
±12°
扭力弹簧刚度
28 Nm/rad
径向弹簧刚度
7 N/mm
转动惯量
106 gcm²
最大阻尼转矩
180 Ncm
重量
90 g
材质

Flange: Stainless steel V4A (1.4404)
Connecting element: FDA-compliant plastic

工作温度
-30°C ~ +80°C
订货型号
DSKF481010
弹性联轴器:Ø d1 = 10 mm, Ø d2 = 10 mm
DSKF481012
弹性联轴器:Ø d1 = 10 mm, Ø d2 = 12 mm
DSKF481212
弹性联轴器:Ø d1 = 12 mm, Ø d2 = 12 mm
DSKF481414
弹性联轴器:Ø d1 = 14 mm, Ø d2 = 14 mm

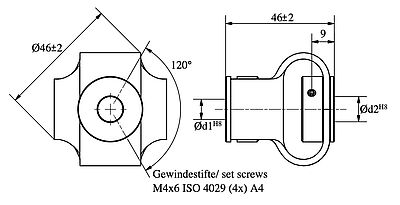

所有尺寸标注单位为mm
STEP查看器/STEP数据:

您需要的STEP文件没有被列出:
需要STEP文件 这里
