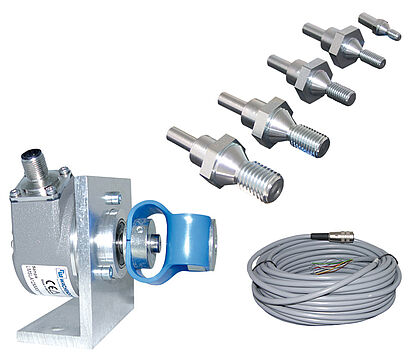

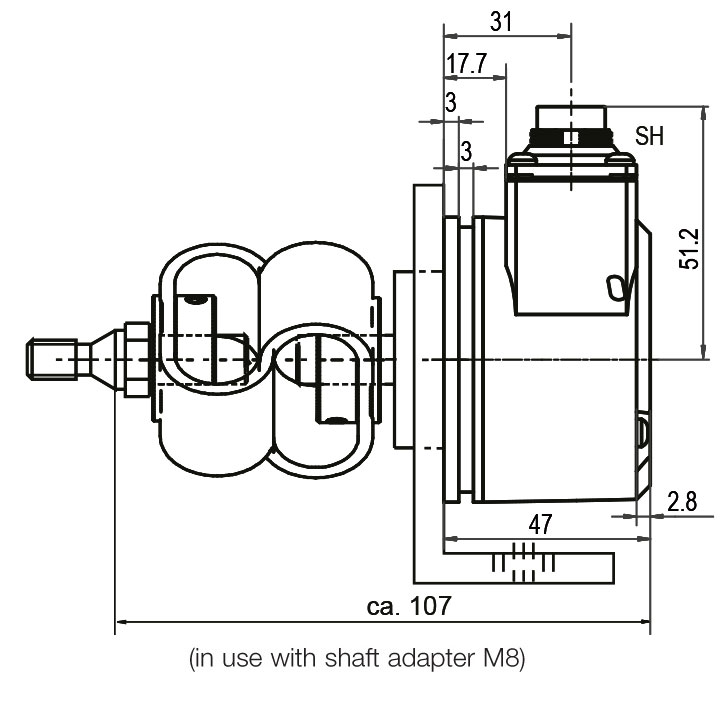

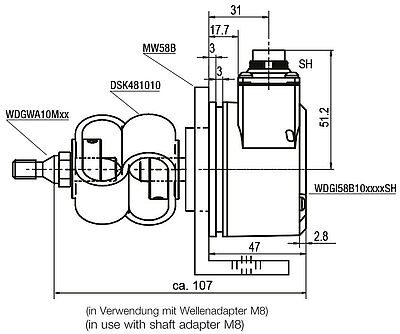

Every installation kit consists:
1 x Encoder, 1 x Mounting angle, 1 x shielded cable 15 m length,
1 x Double loop coupling, 5 x Shaft adapter

Shaft encoder WDGI 58B

1024, 2048, 4096 (TTL/HTL)
1024, 2048 (sin/cos)

H24: 3 channels, A, B and zero marker pulse N
R05: 6 channels, A, B, zero marker pulse N and inv.
SIN: 4 channels, A, B, (sin/cos)

Mounting bracket:
The mounting bracket makes for easy installation of the encoder in the
lift system. However care should be taken that the admissible load of
the coupling is adhered to.

Double loop coupling:
The double loop coupling serves to compensate for any mis-alignment
between the drive and the encoder. The coupling has extremely high
compensation capabilities.

Shaft adapters:
The shaft adapters are screwed into an appropriate thread on the lift and
allow a simple connection via the double loop coupling.
