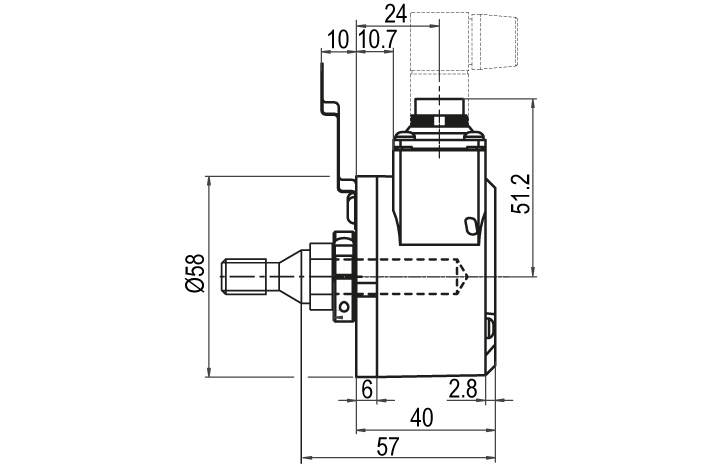

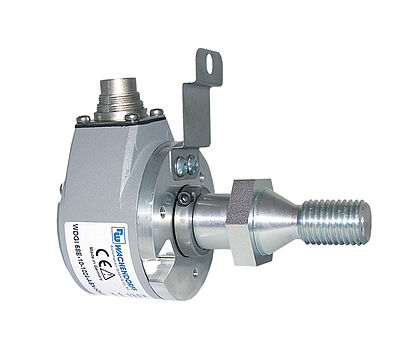

Installation Kit for frequency controlled lifts WDGAS58E with hollow bore (blind) encoder
The following installation kits are available for fitting the encoder to a frequency controlled lift.
- Easy installation on all motor shafts
- Flexible attachment possibilities
- TTL, HTL output
- Threads: M8, M10, M12, M16 und M20
Every installation kit consists:
1 x Encoder, 1 x with 15 m ready-made shielded cable, 1 x shaft adapter
Hollow bore (blind) Encoder WDGI 58E
incl. torque support
1024, 2048, 4096
H24: 3 channels, A, B and zero marker pulse N
R05: 6 channels, A, B, zero marker pulse N and inv.
The shaft adapters are screwed into an appropriate thread on the lift.
