坚固的长度测量系统 LMSCA32-WDGN
with encoder WDGN 36A configurable via NFC
使用新型弹簧臂的紧凑系统,包括WDGN 36A编码器和150mm/200mm测量轮
via NFC configurable:
- Pulses per revolution 1 ppr up to 16384 ppr free selectable
- Output circuit TTL/HTL free selectable
- Ultra compact system with new spring-loaded arm, including configurable encoder WDGN 36A and 150 mm or 200 mm measuring wheel
- Pulses per revolution 1 ppr up to 16384 ppr and output circuit TTL/HTL via NFC configurable
- 卓越的测量结果,归功于0.01 mm/脉冲的分辨率
- 适用于多种测量表面
- 吸收式安装
- 接触压力 – 可通过智能的中心调节机构调整,易于适应
- 预装角度支架,易于拆卸
LMSCA32-WDGN长度测量系统是一套调整完美的预组装的完整系统。
Resolution WDGN 36A 1 ppr up to 16384 ppr free selectable, configurable via NFC
Calculation examples with Measuring systems LMSxxxKH, LMSxxxKG, LMSxxxNG:
Measuring wheel U (200 mm) : PPR encoder = xx mm/脉冲
Example: 200 : 2000 = 0.1 mm/脉冲 (10 脉冲/mm)
Measuring system LMSxxxGR:
Measuring wheel U (150 mm) : PPR encoder = xx mm/脉冲
Example: 150 : 1500 = 0.1 mm/脉冲 (10 脉冲/mm)
供电电压/消耗电流:
4.75 VDC ~ 32 VDC: max. 80 mA
输出电路:
TTL, HTL configurable via NFC
通道:
ABN和反相信号
附件:
适用于带传感器连接器SC8的编码器,M12,8 pin,IP67。
预置带屏蔽的电缆的母头连接器。
直头, KI867
弯头 KIA867
可调预载力:0 N ~ 20 N,每格5 N

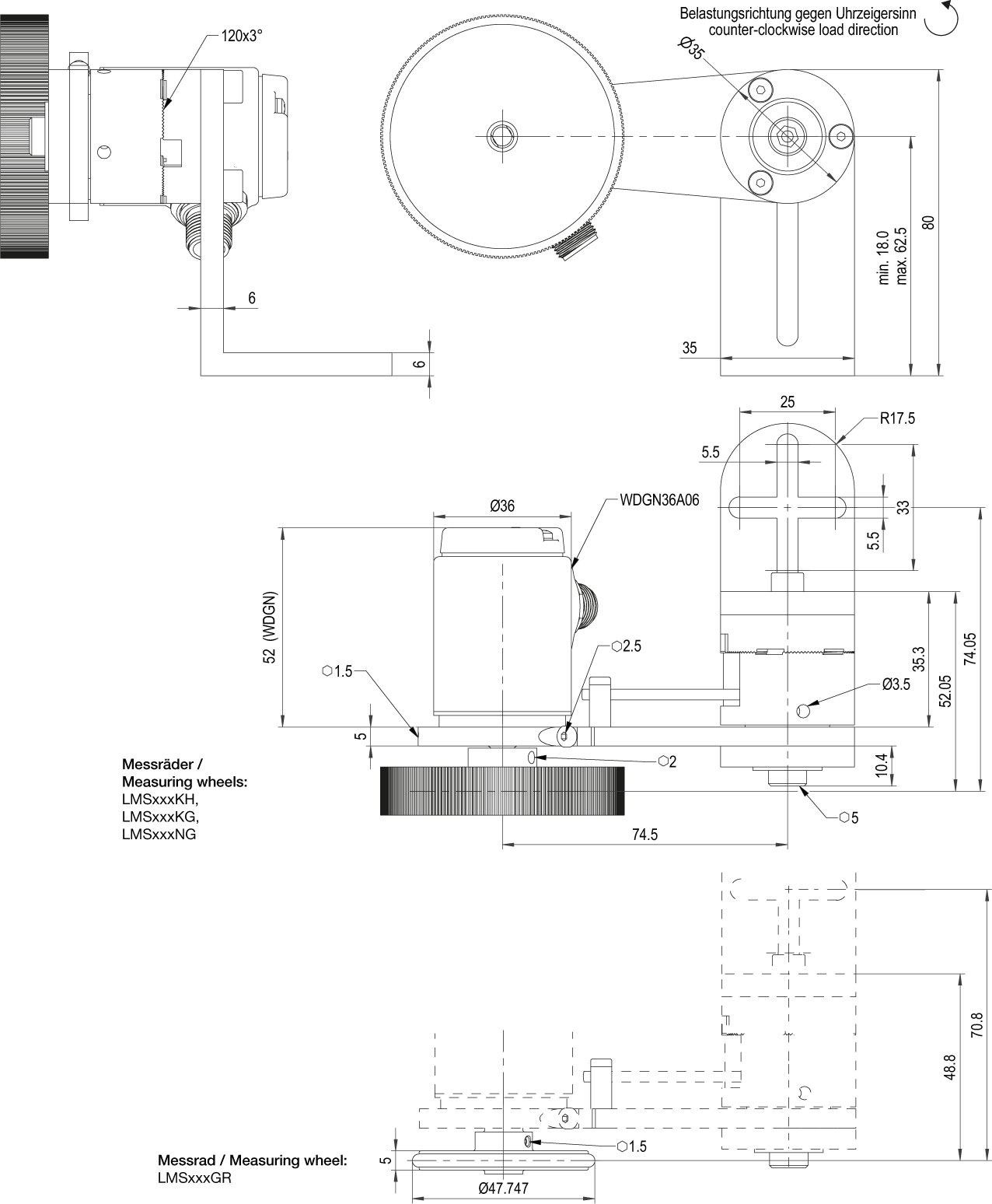

弹簧杆轴长:74.5 mm
接触压力:可调,每转3°/格(等于增加5N压力)
材料:鋁
测量轮周长Ø = 200 mm
LMSCA32-xxxxx-yy-KH 使用MR200KH测量轮:
表面处理:合成树脂(光滑的海翠)
应用范围:塑料,油漆表面,纸张,纸板,木材,金属,纺织品。
LMSCA32-xxxxx-yy-KG 使用 MR200KG测量轮:
表面处理:合成树脂(有凹槽的海翠)
应用范围: 塑料,油漆表面,纸张,纸板,木材,金属,纺织品。
LMSCA32-xxxxx-yy-NG 使用MR200NG测量轮:
表面处理:合成树脂(颗粒胶)
应用范围:纺织品。
测量轮周长Ø = 150 mm
LMSCA32-xxxxx-yy-GR 使用MR200GR测量轮:
表面处理:合成(O 形圈、橡胶、光滑)
应用领域:木材、金属、传送带、纸张、纺织品。
