SZG140

Draw-wire system Robust Line SZG140

Measuring range: 0 mm up to 5000 mm
output: incremental or absolute
Rope sheave circumference: 317.68 mm
Housing: Aluminium, anodised, spring case PA6

数据手册
Seilzugsystem Draw-wire system SZG140
特点
  • Ball bearing drill protection
  • Measuring rope (stainless steel)
  • Bushing
  • Quick and easy mounting
产品详细说明
描述

The draw-wire system SZG140 can be used even where space is tight, thanks to its compact dimensions.
The SZG140 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions.
The mechanics have been perfectly matched to the encoder models WDGI58B or WDGA58B encoders. The encoder is already installed.

Order No. for SZG140 without Encoder: SZG1400500UZVK

Example order No. for SZG140 with Encoder: s. datasheet

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

Accessories: Deflection pulley

测量范围

0 mm up to 5000 mm

分辨率

Calculation of Resolution:
Incremental e.g. 2500 pulses and 5 m wire length

Calculation of pulses/mm:
Pulses/Rope sheave circumference = Pulses/mm
e.g. 2500 / 317.68 = 7.87 Pulses/mm

Absolute e.g. 12 bit single-turn and 5 m wire length

Calculation of steps/mm: (x = Single-turn resolution)
2X/Rope sheave circumference = Steps/mm
e.g. 212 / 317.68 = 4096 / 317.68 = 12.9 Steps/mm

信号
增量
绝对值
工作温度
增量-20°C ~ +80°C; 绝对值-20°C ~ +85°C

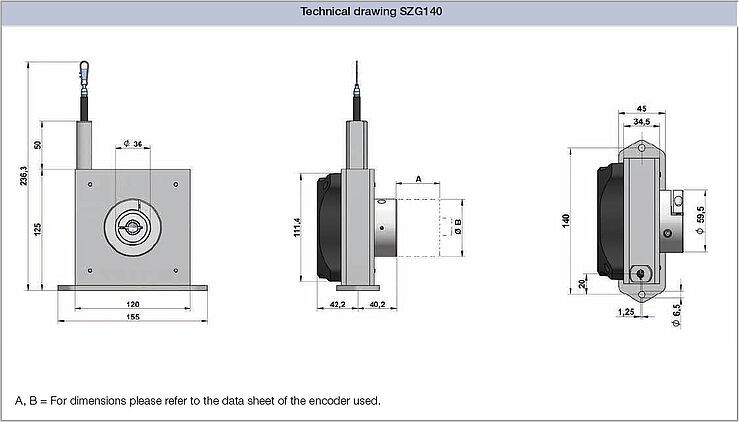

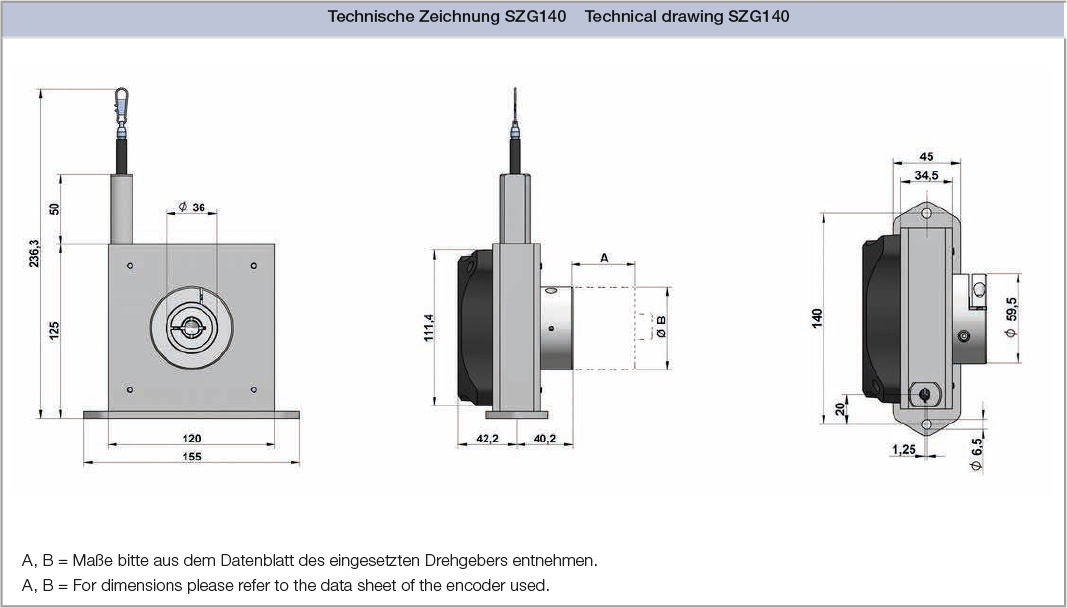

所有尺寸标注单位为mm
