DSK38
弹性联轴器 DSK38
用于与轴直径6毫米，8毫米，10毫米或12毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
最大运行速度
3000 rpm
最大扭矩
150 Ncm
轴最大径向补偿
±2.5 mm
轴最大轴向补偿
±3.0 mm
轴最大角度补偿
10°
扭力弹簧刚度
25 Nm/rad
径向弹簧刚度
15 N/mm
转动惯量
104 gcm²
最大阻尼转矩
200 Ncm
重量
48 g
材质
flange: steel galvanized
conecting element: polyurethane
工作温度
-30°C ~ +80°C
订货型号
DSK380610
弹性联轴器：Ø d1 = 6 mm, Ø d2 = 10 mm
DSK380612
弹性联轴器：Ø d1 = 6 mm, Ø d2 = 12 mm
DSK380808
弹性联轴器：Ø d1 = 8 mm, Ø d2 = 8 mm
DSK380810
弹性联轴器：Ø d1 = 8 mm, Ø d2 = 10 mm
DSK380812
弹性联轴器：Ø d1 = 8 mm, Ø d2 = 12 mm
DSK381010
弹性联轴器：Ø d1 = 10 mm, Ø d2 = 10 mm
DSK381012
弹性联轴器：Ø d1 = 10 mm, Ø d2 = 12 mm
DSK381212
弹性联轴器：Ø d1 = 12 mm, Ø d2 = 12 mm
DSK380606
弹性联轴器：Ø d1 = 6 mm, Ø d2 = 6 mm
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

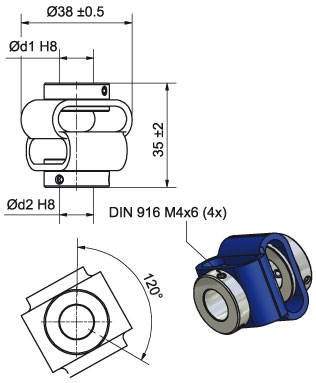

所有尺寸标注单位为mm
