WDGMA10000

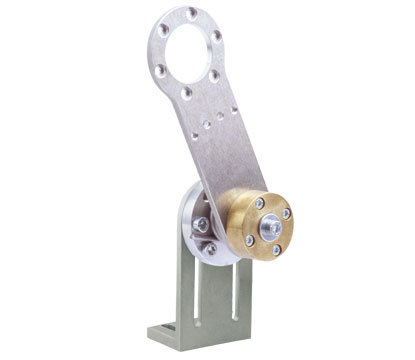

弹簧杆适合轴编码器 58B, 58D, 58K, 58N 和 58T
Highlights
- Variable installation from below, from above, horizontal, vertical
- Adjustable prestresing force: 20 N, 25 N and 30 N
- Can be combined with all measuring wheels of 500 mm circumference
- Available in two loading directions
弹簧动程
Spring travel at tension:
20 N = 50° approx. 90 mm
25 N = 45° approx. 84 mm
30 N = 40° approx. 77 mm
Gewicht
约 760 g
订货型号
WDGMA10000

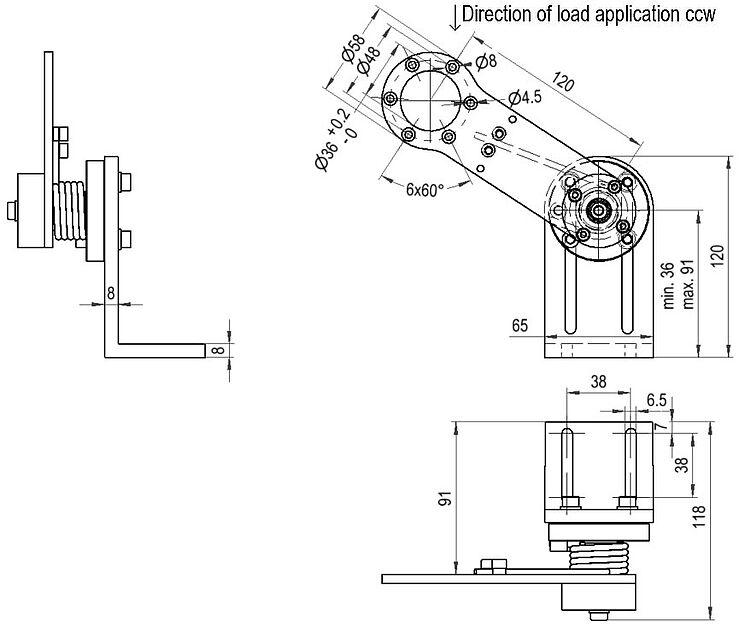

载荷方向, 逆时针
WDGMA10002

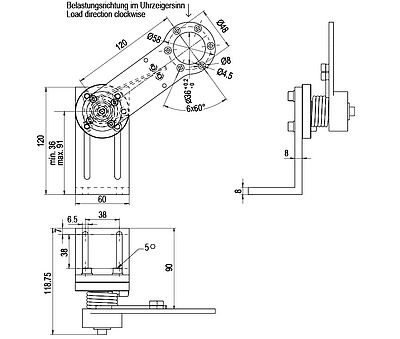

载荷方向, 顺时针
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany
所有尺寸标注单位为mm
