WDGMA3103x

弹簧杆适合轴编码器 36A 和 36J

用于长度测量

Federarm für Drehgeber Spring-loaded arm for encoder LMSMA31031
Highlights
  • Variable installation from below, from above, horizontal, vertical
  • Adjustable prestresing force: 5 N up to 20 N (in steps of 5 N)
  • Can be combined with all measuring wheels of 200 mm circumference
  • Available in two loading directions
弹簧动程

contact pressure / spring travel:
  0 N = 28 mm
  5 N = 24 mm
10 N = 20.2 mm
15 N = 16.3 mm
20 N = 12.5 mm

Gewicht
232 g
订货型号
WDGMA31031
载荷方向, 逆时针
WDGMA31032
载荷方向, 顺时针
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

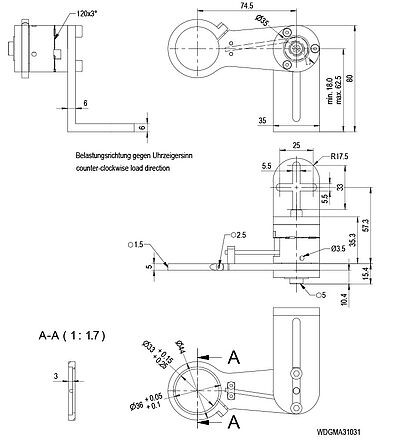

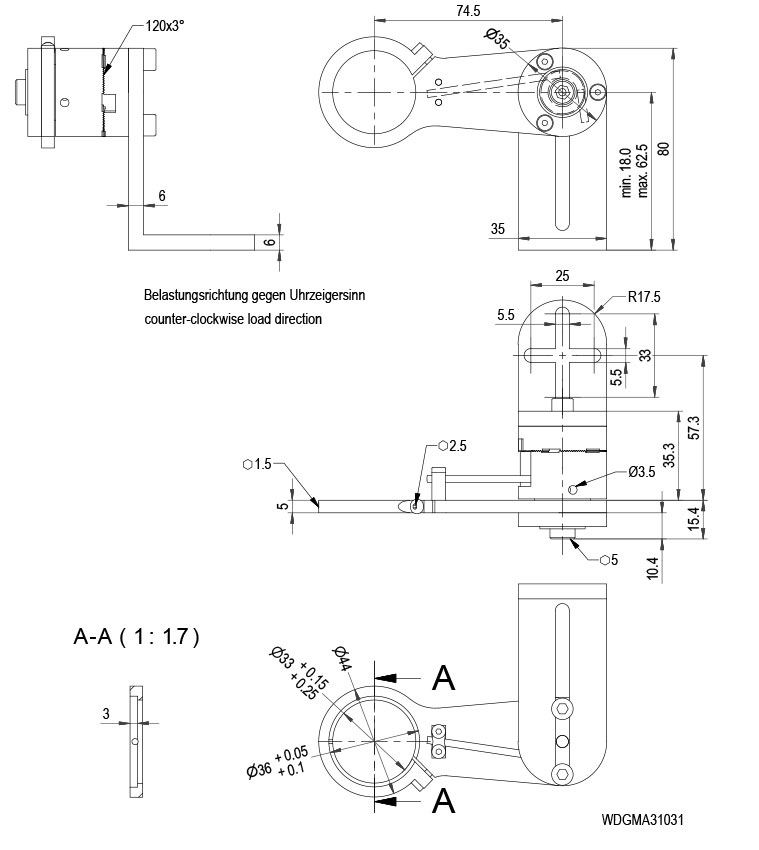

所有尺寸标注单位为mm
WDGMA31031 Belastungsrichtung gegen Uhrzeigersinn Load direction counter clockwise
