WDGDH10000

Linear equilization shaft encoder holder
for encoder WDGI 58B, 58D, 58K, WDG 58T

for lenght determination

 STEP download WDGDH10000.stp

DH10000
Highlights
  • Installation from above
  • Adjustable prestresing force 25 N
  • Can be combined with the measuring wheels
    (MRA200KH, MRA200KG, MRA200NG) of 200 mm circumference
弹簧动程

Spring travel:
25 N = 8.4 mm

Gewicht
约 300 g
订货型号
WDGDH10000
线性补偿编码器持有人

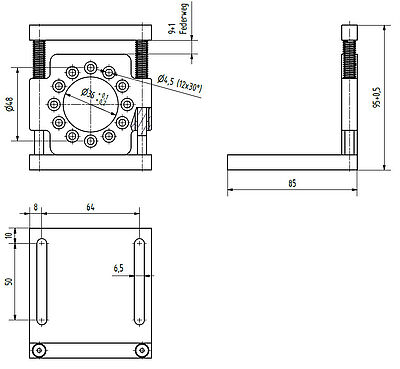

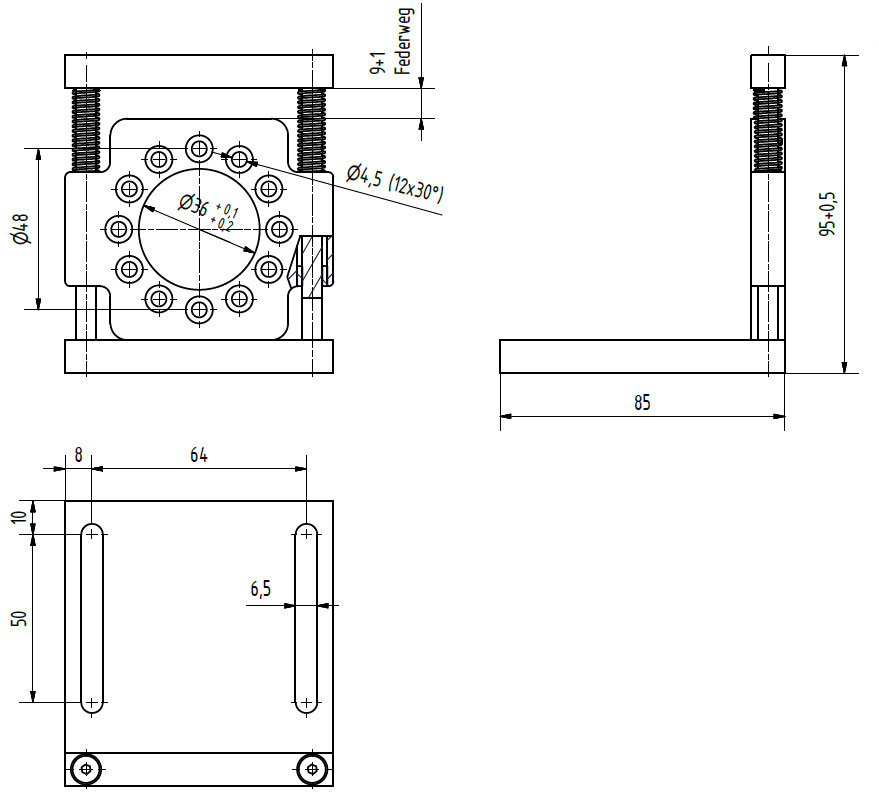

所有尺寸标注单位为mm
Z LMSLA12
