磁性绝对值编码器, PROFINET-IO WDGA 58F
世界上最紧凑的PROFINET编码器!
总线盖 3x M12x1
夹紧法兰
外壳:Ø 58mm
16位/43位 单圈/多圈;

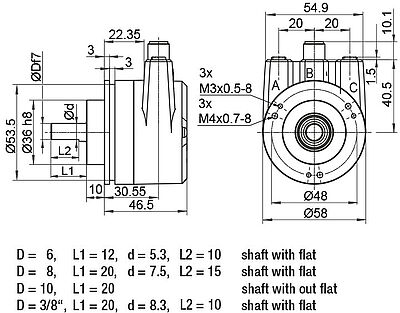

轴:Ø 6mm, Ø 8mm, Ø 10mm, Ø 3/8"
协议 PROFINET-IO (CC-C)
设备子协议可切换,Class3,4

- Endra® 技术:免维护、无污染
- PROFINET,多圈或者单圈
- 带总线盖的紧凑型设计
- 单圈/多圈(最大16位/43位)
- 前瞻性技术
- 双色LED指示运行状态和总线状态和两个L/A LED
- 轴最大负载可达径向60N,轴向50N
- 设备子协议可切换,Class3,4
- IRT
- Configurable via integrated web server:
- IP address
- Subnet mask
- Gateway address
- Encoder parameters readable
- Firmware update
最大65,536步/圈(16位)
多圈分辨率43位
轴长: 12 mm
轴允许最大负载径向: 60 N
轴允许最大负载轴向: 50 N
轴长: 20 mm
轴允许最大负载径向: 60 N
轴允许最大负载轴向: 50 N
轴长: 20 mm
轴允许最大负载径向: 60 N
轴允许最大负载轴向: 50 N
轴长: 20 mm
轴允许最大负载径向: 60 N
轴允许最大负载轴向: 50 N
消耗电流: typ. 125 mA
功耗: typ. 3 W
描述 | |
---|---|
BI2 | 总线盖 3x M12x1 |



- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43 bit)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°


- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems


The future of steel production with smart sensor technology.


PROFINET IO; EtherNet/IP; EtherCAT; Universal IE


GSDML file for ≥ vers. 2.00
WDGA absolute with PROFINET IO
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.


GSDML file for ≥ vers. 2.00
WDGA absolute with PROFINET IO
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.


Declaration from the PROFIBUS-Nutzerorganisation for the WDGA PROFINET for Wachendorff Automation GmbH & Co. KG


for Wachendorff Automation GmbH & Co. KG.


for Wachendorff Automation GmbH & Co. KG.


Ready-made Industrial Ethernet connection cable KIE-4-67-RJ:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EthertNet/IP, EtherCAT, universal IE)
Plug M12 - cable - plug RJ45

Ready-made Industrial Ethernet connection cable KIE-4-67-DC:
suitable for encoders WDGA with bus cover BI2 (PROFINET, EthertNet/IP, EtherCAT, universal IE)
Plug M12 - cable - plug M12


螺旋联轴器 WK24

波纹管联轴器 BK29
用于与轴直径6毫米,8毫米,10毫米或12毫米*编码器。
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

弹性联轴器 DSK29
用于与轴直径6毫米,8毫米或10毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

弹性联轴器 DSK38
用于与轴直径6毫米,8毫米,10毫米或12毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

弹性联轴器 DSK48
用于与轴直径10毫米,12毫米或14毫米编码器。
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

测量轮 MR150GR06
周长150mm,
面:: O-ring 3,5 mm, material NBR70
应用领域:Wood, metal, conveyor belts, paper, textiles.
用于与轴直径6毫米编码器

测量轮 MRA200GR10
周长:200 毫米、
衬里: 3.5 毫米宽 O 型圈,材料 NBR70
应用范围 木材、涂漆表面、纸张、塑料。
适用于带直径 10 mm 轴的旋转编码器。

测量轮 MRA200KR
周长200mm,
面:金属,滚花
应用领域: 纸板,木材,纺织品,橡胶,软塑料。
用于与轴直径6毫米,10毫米或12毫米编码器。

测量轮 MRA200KH
周长200mm,
面:塑料(聚氨酯,平稳)
应用领域:纸板,木材,软塑料,纺织,皮革,造纸,线材,型材,脂润滑金属,油漆表面。
用于与轴直径6毫米,10毫米或12毫米编码器。

测量轮 MRA200NG
周长200mm,
面:塑料(聚氨酯,橡胶防滑钉)
应用领域:塑料,纸张,纸板,木材,纺织品,羊毛,地毯,电缆测量。
用于与轴直径6毫米,10毫米或12毫米编码器。

测量轮 MRA200KG
周长200 mm,
面:塑料(聚氨酯,有凹槽)
应用领域:油漆表面,塑料,纸张,纸板,木材,纺织品,玻璃,地板。
用于与轴直径6毫米,10毫米或12毫米编码器。

测量轮 MRA500KH
周长500mm,
面:塑料(聚氨酯,平稳)
应用领域:纸板,木材,软塑料,纺织,皮革,造纸,线材,型材,脂润滑金属,油漆表面。
用于与轴直径10毫米或12毫米编码器。

测量轮 MRA500NG
周长500mm,
面:塑料(聚氨酯,橡胶防滑钉)
应用领域:纸板的,木材,塑料,地毯,粗糙的纺织品,电缆测量,纸张,羊毛。
用于与轴直径10毫米或12毫米编码器。

测量轮 MR500KV
周长500mm,
面:塑料(的Vulkollan®,平稳)
应用领域:纸,纸板,电缆,脱脂的金属,粗糙的木头,塑料,线材。
编码器轴Ø10毫米
